Weld-on Round Base Plate for Baluster Posts

Secure your stainless steel balustrade system with our premium weld-on round base plates, engineered for a robust and professional finish. Designed to fit either 42.4mm or 48.3mm diameter stainless steel tube, these base plates offer a high-strength connection ideal for balustrades, handrails, railings, and structural steelwork.

Choose from two core designs to suit your installation needs:

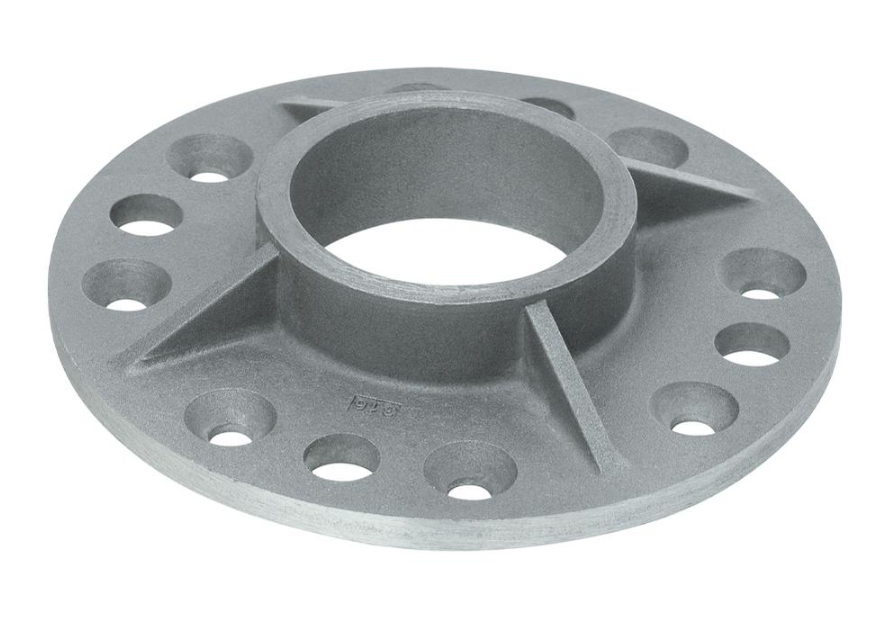

1. Standard Weld-On Round Base Plates

• Material: High-grade stainless steel - 304 for internal use and 316 for external use

• Fixing Type: Weld-on

• Finish: Satin finish for a sleek, modern look

• Use: Suitable for mounting stainless steel tube to flat surfaces in both indoor and outdoor applications

These standard base plates offer clean aesthetics and firm anchoring, perfect for structural tube fixing in residential, commercial, and public settings.

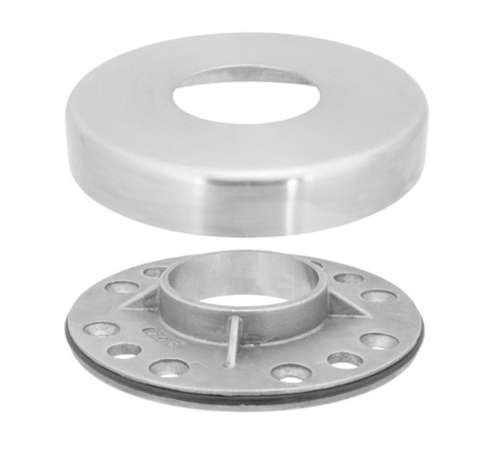

2. Weld-On Round Base Plates with O-Ring & Cover

• For Tube Sizes: 42.4mm or 48.3mm

• Enhanced Aesthetic: Integrated O-ring and stainless steel cover provide a tidy, sealed look that conceals welding marks and fasteners

• Weather Protection: O-ring design improves water-resistance and reduces corrosion risk at the joint

• Finish: Satin-polished for professional results

These advanced base plates are ideal for installations where visual finish and weatherproofing are essential, such as balconies, terraces, staircases, and outdoor balustrades.

Key Features

• Precision-engineered for 42.4mm and 48.3mm stainless steel round tube

• Made from durable, corrosion-resistant stainless steel

• Suitable for welding in commercial and residential balustrade systems

• O-ring models offer additional sealing and aesthetic enhancements

• Compatible with BS6180-compliant balustrade systems

Why Choose Our Weld-On Base Plates?

Whether you're building a custom handrail or fitting a glass balustrade, our stainless steel base plates provide the strength, finish, and reliability your project demands. With options that combine function and form, you'll find the right fit for any application.
